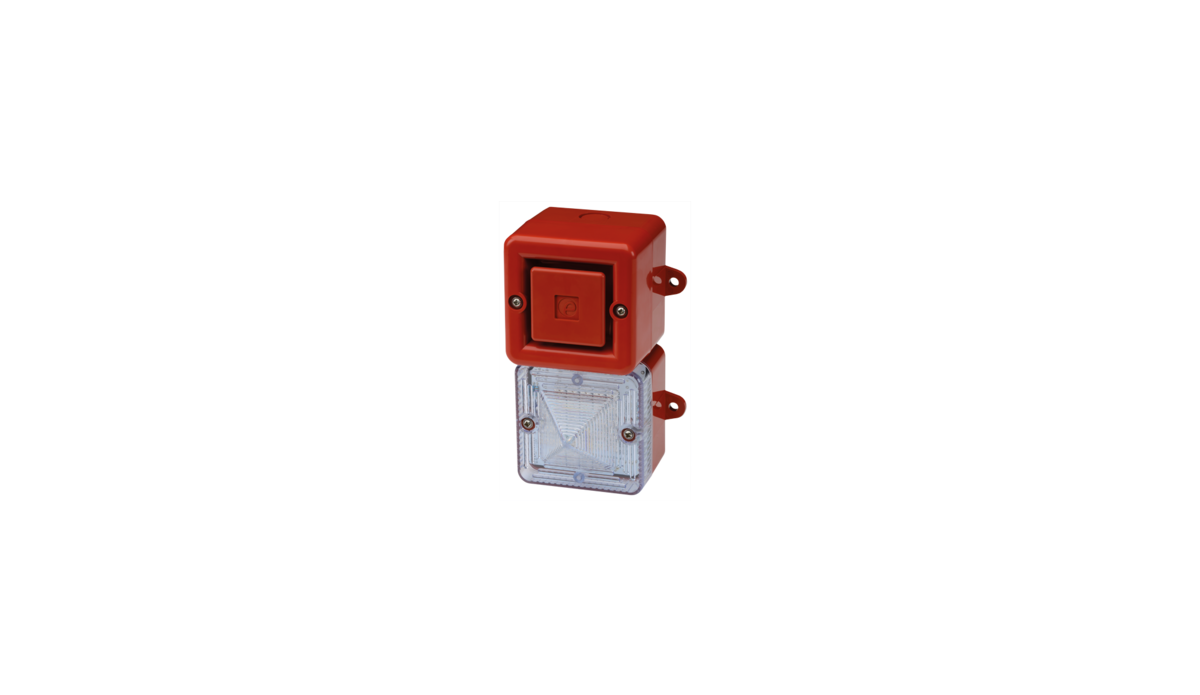

The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.
| Sounder: | |
| Maximum output: | 104dB(A) @ 1 metre [95dB(A) @ 10ft/3m] |
| Nominal output: | 100dB(A) @ 1m +/- 3dB – Tone 2 [91dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 100dB(A); Min. 90dB(A) – Tone 2 |
| Effective range: | 32m/105ft @ 1KHz |
| Stage switching: | Negative Reverse polarity stage switching on DC units. |
| Beacon: | |
| Light source: | High intensity L.E.D. array. 24 x Superflux type high ouput L.E.D’s |
| Options: | Steady or 2Hz flash mode (on board selection) |
| Peak/Effective Intensity cd: | Green L.E.D: 176cd – measured ref. to I.E.S. |
| Terminals: | 0.5 to 4.0mm² cables |
| L.E.D. colours: | Amber Blue, Green, Red and White |
| Lens colour: | All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light. |
| General: | |
| Voltages DC: | 24V dc (10-30V dc); 48V dc (35-60V dc) |
| Voltages AC: | 115V ac; 230V ac |
| Ingress protection: | IP66 |
| Enclosure material: | High impact UL94 V0 & 5VA FR ABS |
| Enclosure colour: | Red (RAL3000), grey (RAL7038) & white. |
| Cable entries: | 4 x M20 clearance gland entries in side & back |
| Terminals: | 0.5 to 1.5mm² cables. |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20° [68°] |
| Weight: | DC: 0.46kg/1.01Ibs AC:0.57kg/1.25Ibs |
*Candela measurements representative of performance with clear lens at optimum voltage
*SPL data +/-3dB(A). Measured at optimum voltage.
