general.description

general.bexcp3pbDesc1

general.feature

• general.bexcp3Desc2
• general.bexcp3Desc3
• general.bexcp3pbDesc2
• general.bexcp3Desc5
• general.bexcp3Desc6

general.specification

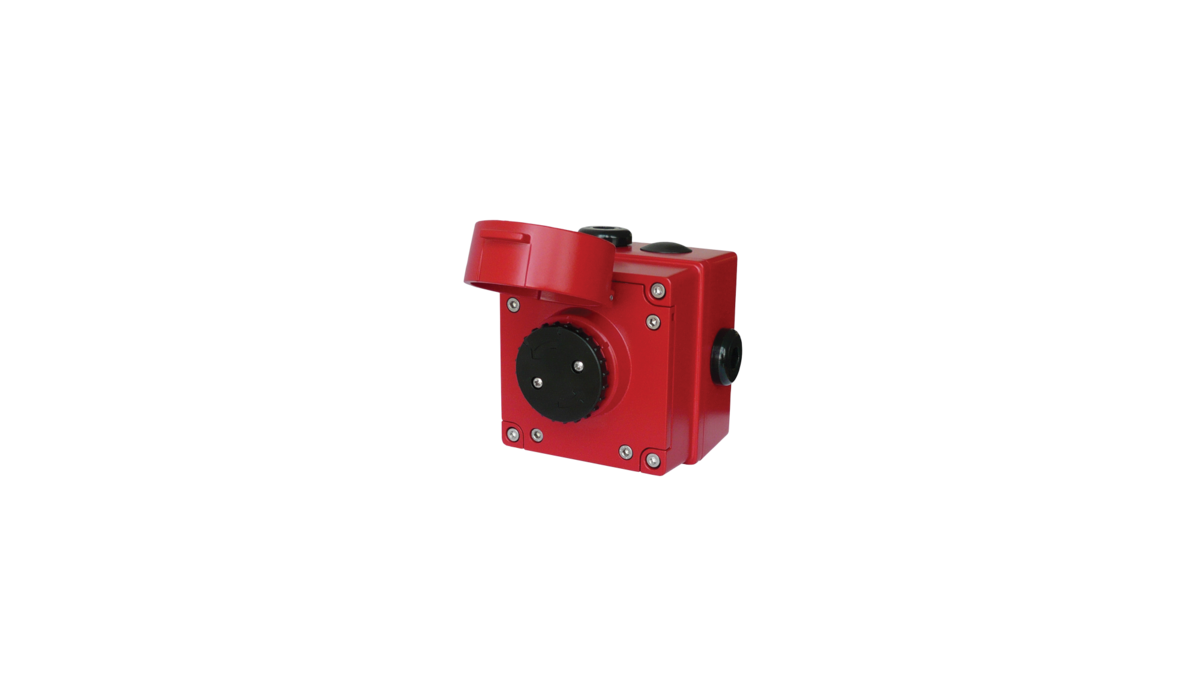

BExCP3A-PB:	general.aversion
general.coding:	II 2G Ex db eb IIC T6 Gb Ta = -40°C to +70°C II 2D Ex tb IIIC T75°C Db IP66
general.switchrating:	250V ac general.maxcurrent 5.0A 250V dc general.maxcurrent 0.25A 125V dc general.maxcurrent 0.5A 75V dc general.maxcurrent 0.75A 50V dc general.maxcurrent 1.0A 30V dc general.maxcurrent 5.0A general.maxresistive 12V dc general.maxcurrent 5.0A
BExCP3B-PB:	general.bversion
general.coding:	II 2G Ex db eb mb IIC T4 Gb Ta = -40°C to +50°C II 2D Ex tb IIIC T60°C Db IP66
general.switchrating:	48Vdc nom. 56Vdc max. 0.75A max. 24Vdc nom. 28Vdc max. 5.0A general.maxresistive 12Vdc nom. 15Vdc max. 5.0A max. 6Vdc nom. 9Vdc max. 5.0A max.
Min. resistor (2W):	48V = 1K8 24V = 470R 12V = 120R 6V = 47R
BExCP3B-PB:	general.cversion
general.coding:	II 2G Ex db eb mb IIC T4 Gb Ta = -40°C to +65°C II 2D Ex tb IIIC T75°C Db IP66
general.switchrating:	125V dc general.maxcurrent 0.5A general.maxresistive 75V dc general.maxcurrent 0.75A 48V dc general.maxcurrent 1.0A 24V dc general.maxcurrent 5.0A general.maxresistive 12V dc general.maxcurrent 5.0A 6V dc general.maxcurrent 5A
Min. resistor (1.5W):	48V = 1K8 24V = 430R 12V = 110R 6V = 27R
Resistors (Current limited):	48V < 1K8 general.maxcurrent: 31mA 24V < 430R general.maxcurrent = 62mA 12V < 110R general.maxcurrent: 125mA 6V < 27R general.maxcurrent = 250mA
general.general:
general.ambient:	Ta = -40°C to +70°C [-40° to +158°F] (+50°C for BExCP3B, +65°C for BExCP3C)
general.ip:	IP66/67
general.enclosureMaterial:	general.marineGrade
general.efinish:	general.cnpcoated
general.color:	general.ral3000 general.oaor
general.cableEntries:	general.2xm20 general.1xm20 general.backbox general.2xbottom general.adaptersavail
general.splugs:	general.2xexe general.brassnickel
Terminal:	general.cablesor
general.weight:	0.8Kg

general.download

general.dataSheet

Datasheet

general.insmanual

A version installation

B version installation

C version installation

general.cert

IECEx certificate

ATEX certificate

INMETRO certificate

general.drawing

2D drawing (PDF)

2D drawing (DWG)

3D drawing (STEP)

Pipe Mount Drawing (PDF)
