ECS-500™ Clean Agent Suppression System with Kidde Fire Systems Fluoro-K
The ECS-500 Clean Agent Suppression Systems deliver enhanced performance over 360 psi (25 bar) systems. With a higher storage pressure of 500 psi (35 bar), these systems extend agent travel distance, making them an ideal mid-tier solution for applications that don't require ADS™ performance. This flexibility allows you to balance application size, design needs, and budget constraints.
Benefits:

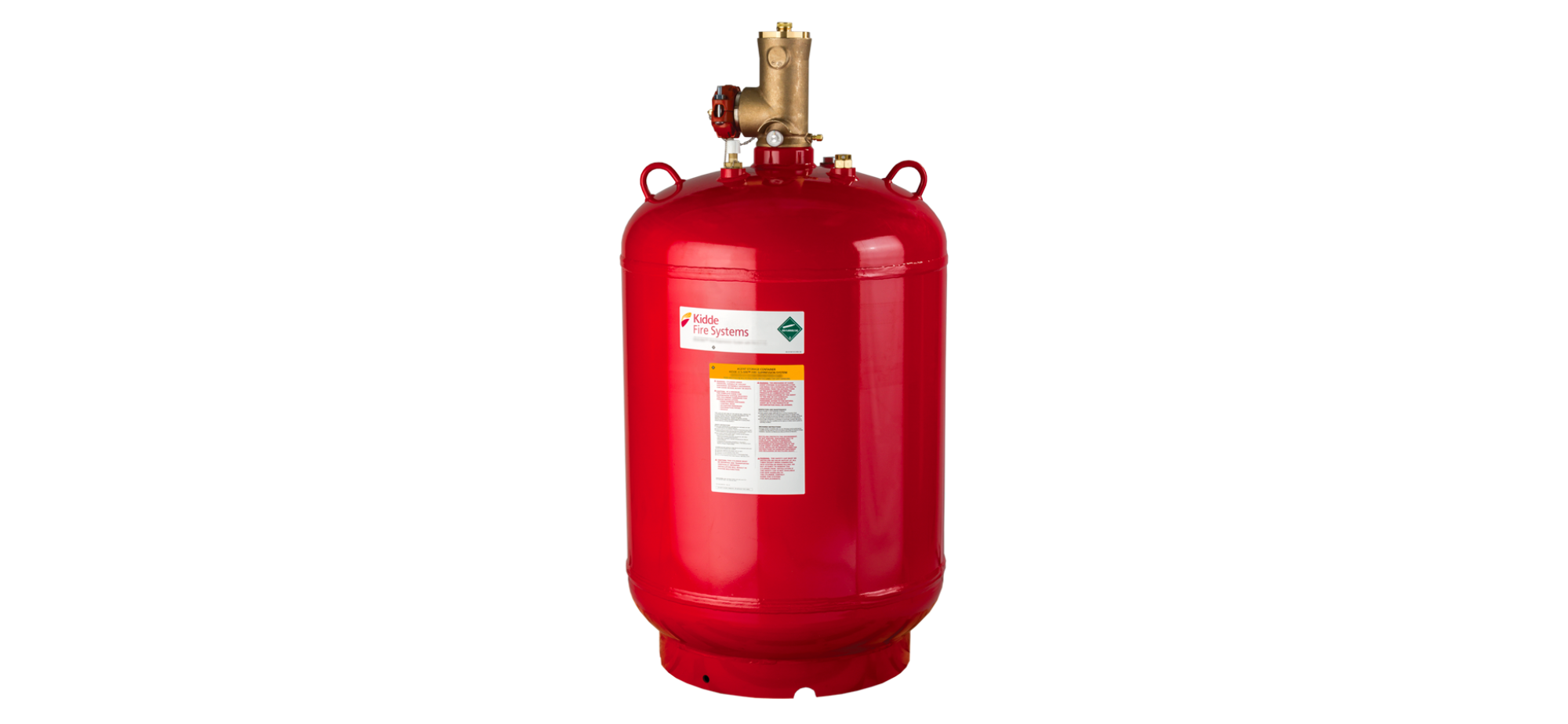

- A new 1,100 lb. cylinder reduces the number of cylinders needed and speeds up installation while covering areas up to 27,000 cubic feet with a single unit.
- Higher system pressure supports longer pipe runs and enables the use of smaller pipe diameters.
- SOffers greater flexibility to store cylinders more than twice the distance from the hazard area compared to 360 psi (25 bar) systems.
- Compatible with the existing 4.0 HASP Key flow calculation software.
Features
- A wide range of filling capacities from 6 lbs. to 1,100 lbs
- ire protection of up to 27,000 cubic feet with a single cylinder
- Provides economical protection of multiple enclosures when used with directional valves
Technical Specifications
- Easy to design using our engineered series software including pressure vent calculation
- High performance system
Listing & Approvals
- cULus Listed
- FM Approved
- USCG Approved
- Other marine- and land-based approvals in process
