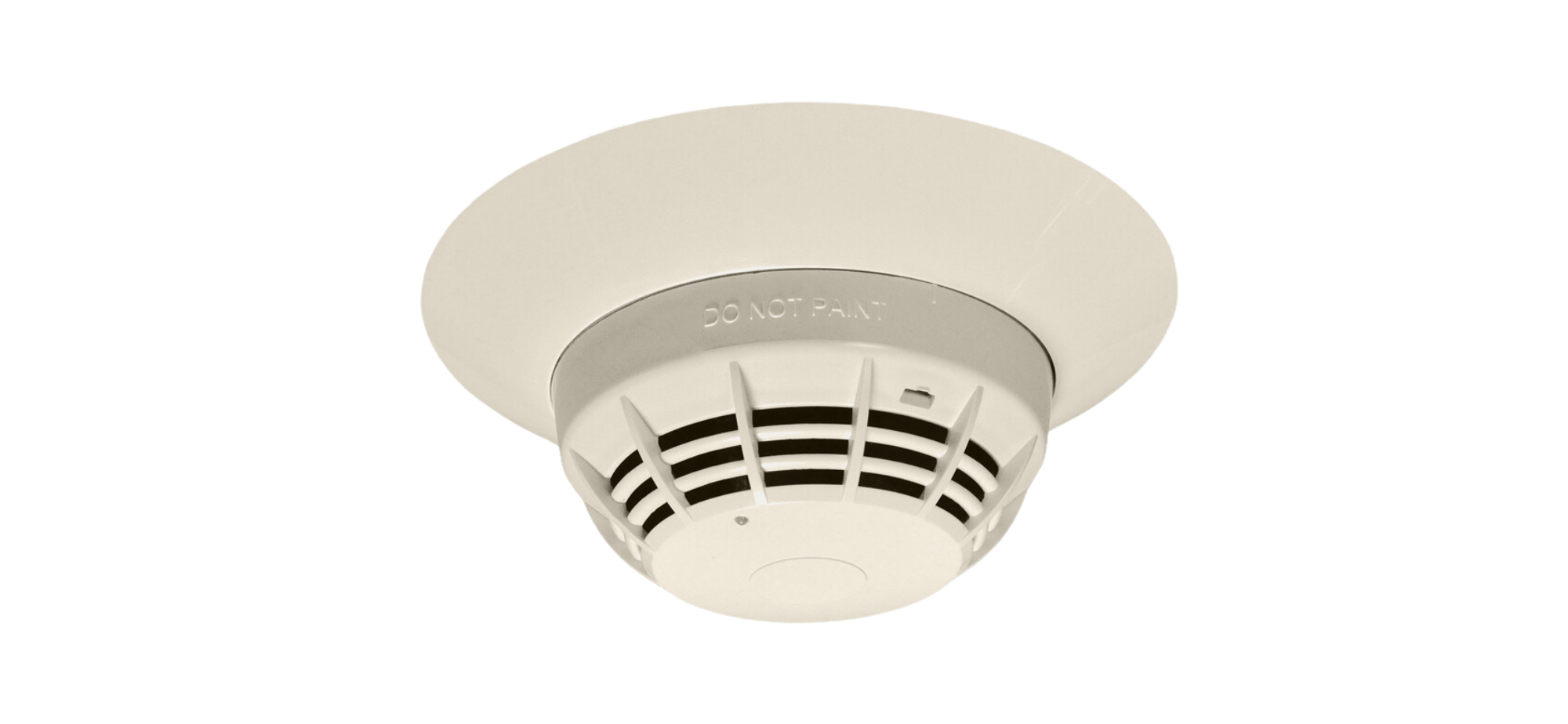

DS-PS Intelligent Photoelectric Smoke Detector
The DS-PS Photoelectric Smoke Detector is an intelligent device that employs an optical sensing chamber to detect smoke. Its built-in microprocessor analyzes sensor readings, compares them with historical data, and filters out atypical signal patterns to minimize false alarms. Designed for practicality, the DS-PS enhances efficiency, reduces installation time and costs, and improves life safety and property protection.
Features
- Optical smoke sensing technology
- Field-replaceable smoke chamber
- Works with SmartOne® communication protocol
- Compatible with Kidde®, FENWAL® and Chemetron® branded intelligent control units
- Operates in conjunction with SmartOne® CPD-7052, PSD-7152 and THD-7252 legacy detectors
- Detector head and terminal base design (bases sold separately)
- Low-profile design blends into ceiling
- Attractive 6 in. diameter trim ring provided with bases
- Electronic Addressing performed with SmartOne Hand-Held Programmer
- Advanced data analysis reduces chance of nuisance Alarms
Technical Specifications
- 24 VDC (nominal)
- Current - Normal Operating: 150 μA Alarm: 220 μA
- Operating Environment – Temperature: 32 to 120°F (0 to 49°C)
- Storage temperature: −4 to 140°F (−20 to 60°C)
- Shipping weight: 0.44 lb. (164 g)
- Quick enabling and connection to IntelliSite.
Listing & Approvals
- FM Approved
- cULus Listed
- California State Fire Marshal Listed
