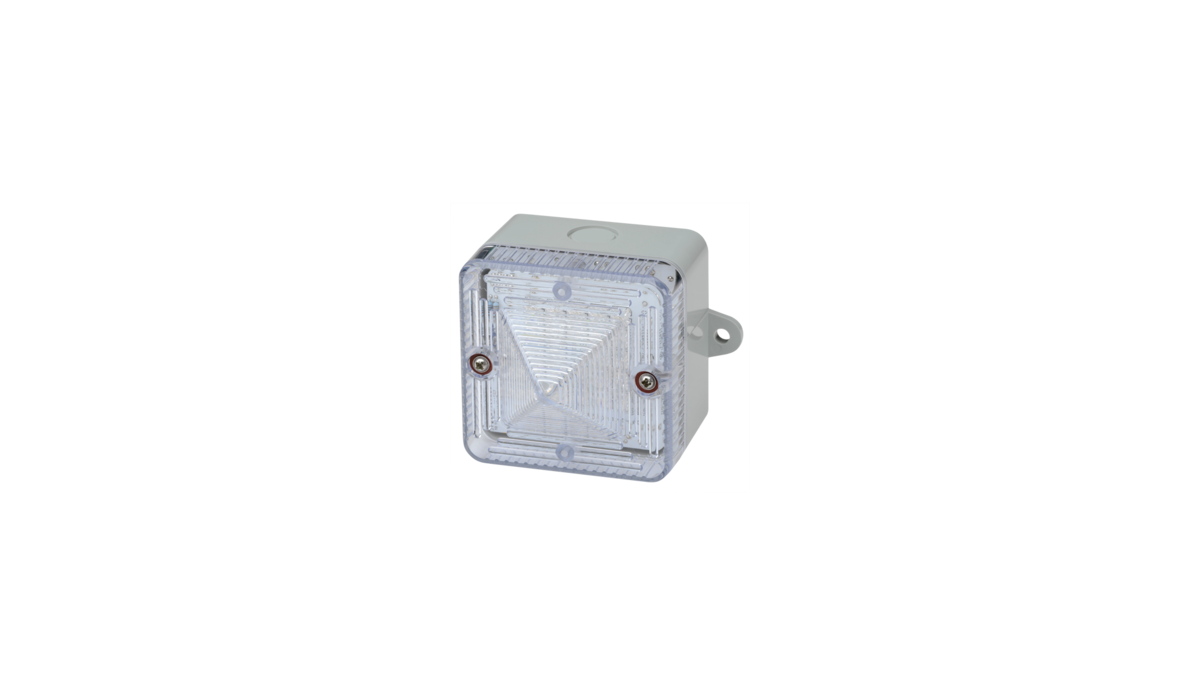

The array of 24 Superflux type high output L.E.D’s generates over 120 candela of light output and can be user set to either steady of flashing mode. Available in cULs approved version for general signalling use.
| Light source: |
High intensity L.E.D. array.
24 x Superflux type high ouput L.E.D’s |
| Options: |
Steady or 2Hz flash mode (on board selection) |
| Peak/Effective Intensity cd: |
Green L.E.D: 176cd – measured ref. to I.E.S. |
| Terminals: |
0.5 to 4.0mm² cables |
| L.E.D. colours: |
Amber Blue, Green, Red and White |
| Lens colour: |
All L.E.D. colours use a Clear lens to maximise output and to ensure the signal is most effective in high ambient light levels. |
| General: |
|
| Ingress Protection: |
IP66 Type 4/4X/13/3R |
| Housing material: |
UL94V0 & 5VA FR ABS |
| Housing colour: |
RAL3000 Red, RAL7038 Grey and White |
| Lens material: |
PC |
| Fixings: |
Stainless Steel |
| Operating temp: |
-25° to +55°C [-13 to +131°F] |
| Storage temp: |
-40° to +70°C [-40 to +158°F] |
| Relative humidity: |
90% at 20°C [68°F] |
| Weight: |
0.20kg/0.44Ibs |
