Product information

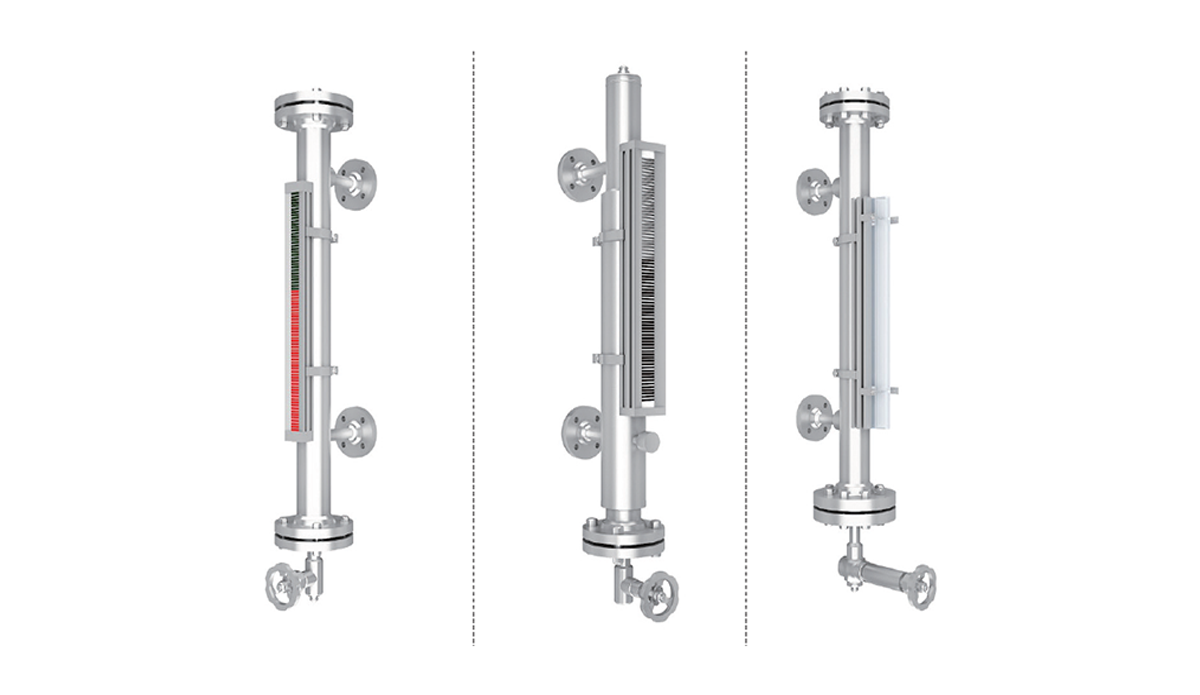

Magnetic Level Gages

Since 1955, NKG has provided magnetic level gages, is one of the safest and most economical ways to measure and control your level requirements, for all kinds of industrial.

In all aspects of its business operations, is making the utmost effort to ensure that its chemical products are as safe as possible, working conditions are safe and hygienic, and the environment is protected in accordance with the High Pressure Gas Safety low of Japan.

In applications of extreme pressure, temperature, and vibration, and highly corrosive or hazardous material, the NKG MG series will perform where all others fail.

MG Level Gages have three components

  • The float chamber

    The float chamber is made of nonmagnetic material and is attached to the tank or vessel so that the liquid level inside the float chamber and host vessel is the same.

  • The magnetic float

    The magnetic float, originally designed according to pressure, temperature, density and liquid type, is manufactured by our precision machining and experienced welding. The float contains patented magnetic assembly that generates a sharp magnetic

  • The external indicator

    The hermetically sealed indicator unit, which is mounted on the outside of the gage, contains a magnetic indicator that interlocks magnetically with the float inside the chamber. As the float moves up and down with the liquid level, the magnetic indicator element tracks the changes in level. An external scale, mounted on the indicator unit, permits quick determination of liquid level.


  • MG Level Gages measure any height of the level with mounted Series of the external indicators on the chamber.
    Standard As for the KLINGAGE MG (Magnet Float) Type Level Gage, the center to center distance = the Visual Length become average.
  • MG Level Gage is designed and manufactured to meet each condition.
  • The Indictaor Rotation can be freely changed.
  • MG Level Gages measure that the boundary surface level of two kinds liquid with different specific gravity.
  • MG Level Gages measure the level of underground tank.
  • MG Level Gages accommodate transmitters for remote level monitoring and recording, as well as electronic and pneumatic switches for automated level control.
  • The remote control becomes of the transmission of 4 - 20 mA of installation DC possible in the Level Detector to the column main unit.
  • It is possible in the easiness of the setting as the installation length = the Visual Length.
  • It is possible to manufacture as the MG (Magnet Float) Type Level Gage all kinds, the high-pressure gas minister authorization article.
