Product information

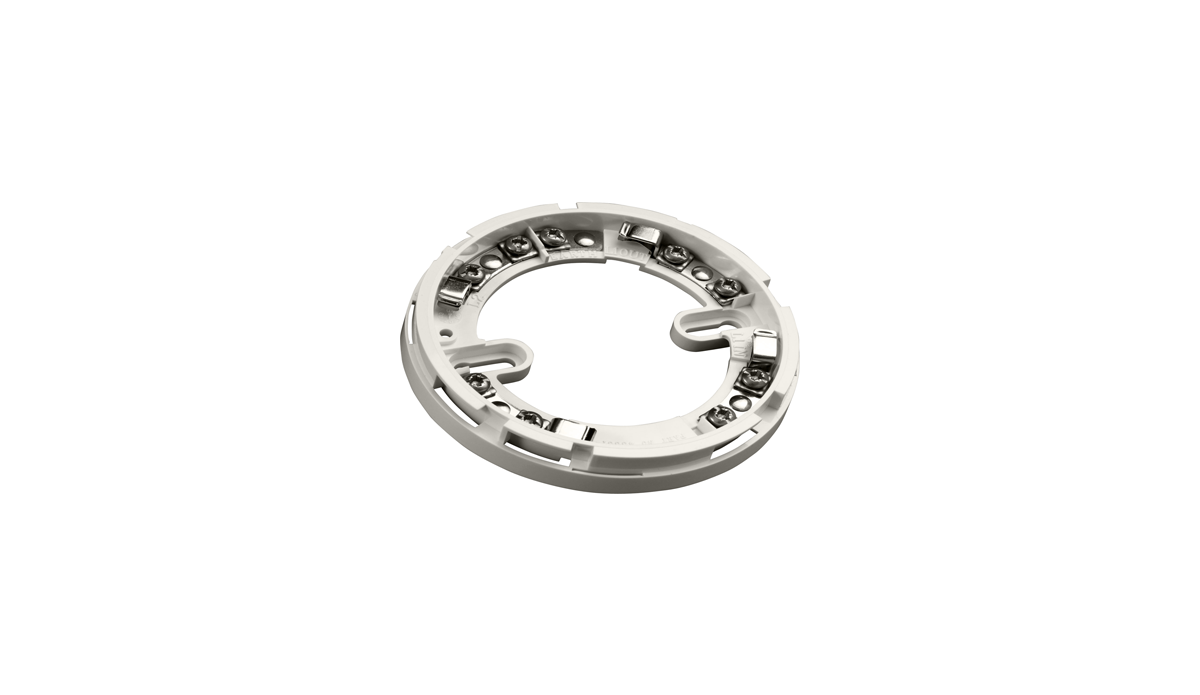

Series 65 Standard Base

The Series 65 Standard Base has been designed to enable detectors to be fitted without the need of force – particularly useful when fitting to suspended ceilings. All Series 65 bases have a one-way only fit. Detectors can be locked into place by a grub screw using a 1.5mm hexagonal screwdriver.

Brand Information

Series 65 incorporates well-proven sensing technologies, including an Integrated Circuit based on that used in XP95 analogue addressable detectors.

The Series 65 range has a wide operating voltage of 9–33V and consists of ionisation, integrating ionisation and optical smoke detectors, four grades of heat detector and a range of bases.

Brand Features

  • Wide-operating voltage of 9–33 V DC
  • Wide-operating and storage temperature of -20°C to +60°C
  • Can be used on security systems
  • Electrically and mechanically compatible with Series 60
  • Proven detection performance

Specification

General
Warranty 10 year
Conformance
Standards EN 54-5
Approvals DNV.GL, VdS, BOSEC

Download

Certificate Installation Guides Product Guides
BOSEC - Belgian Organisation for Security Certification Series 65A Smoke & Heat Detectors Installation Instructions PP2061 Series 65 EPG
VdS - Verband der Schadenversicherer Series 65 Mounting Base Installation Guide
DNV.GL - Det Norske Veritas Germanischer Lloyd
BOSEC - Belgian Organisation for Security Certification
