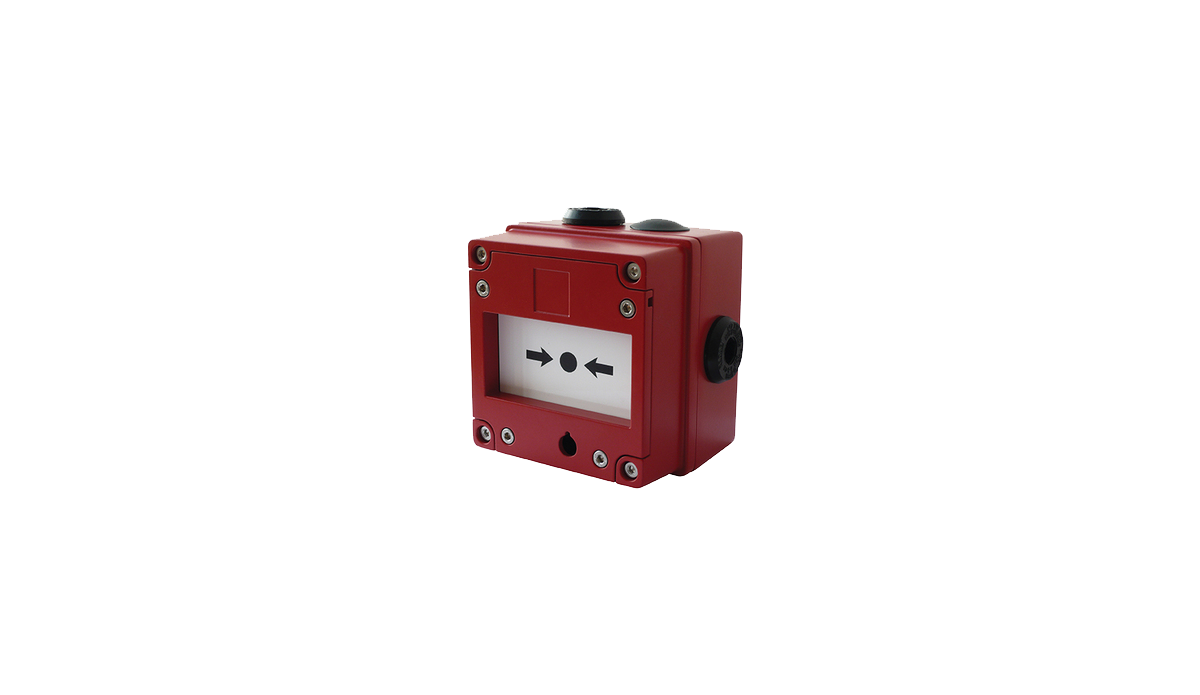

The WP3-BG features an enclosure manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code.
| WP3-BG: |
Weatherproof Break Glass Manual Call Point |
| Switch rating: |
AC voltage 250V Max. Current 5.0A Max.
DC voltage 48V Max. Current 1.0A Max.
DC voltage 24V Max. Current 3.0A Max. |
| Ambient: |
Ta = -40°C to +75°C [-40° to +167°F] |
| Ingress protection: |
IP66/67 |
| Enclosure material: |
Marine grade copper free LM6 Aluminium |
| Enclosure finish: |
Chromated & powder coated finish: anti-corrosion. |
| Colour: |
RAL3000 Red (others available on request) |
| Cable entries: |
2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries Adapters available to 1/2"NPT, 3/4"NPT or M25 |
| Stopping plugs: |
2 x Nylon plugs as standard Brass, nickel plated brass and stainless steel plugs optional |
| Terminals: |
8 × 2.5mm² DIN rail |
| Weight: |
0.8Kg |
