Description

Available with optional LED indicator and with either single or double pole change over switches. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code. SIL2 compliant to IEC 61508 (2010).

Features

• Alternative housing colours are available to meet specific requirements
• Single or double pole c/o switch
• DIN rail mounted terminal blocks: 8 × 2.5mm²
• Metalised Polyester or stainless steel duty label
• Optional Indicator LED
• Break glass hammer accessory available

Specification

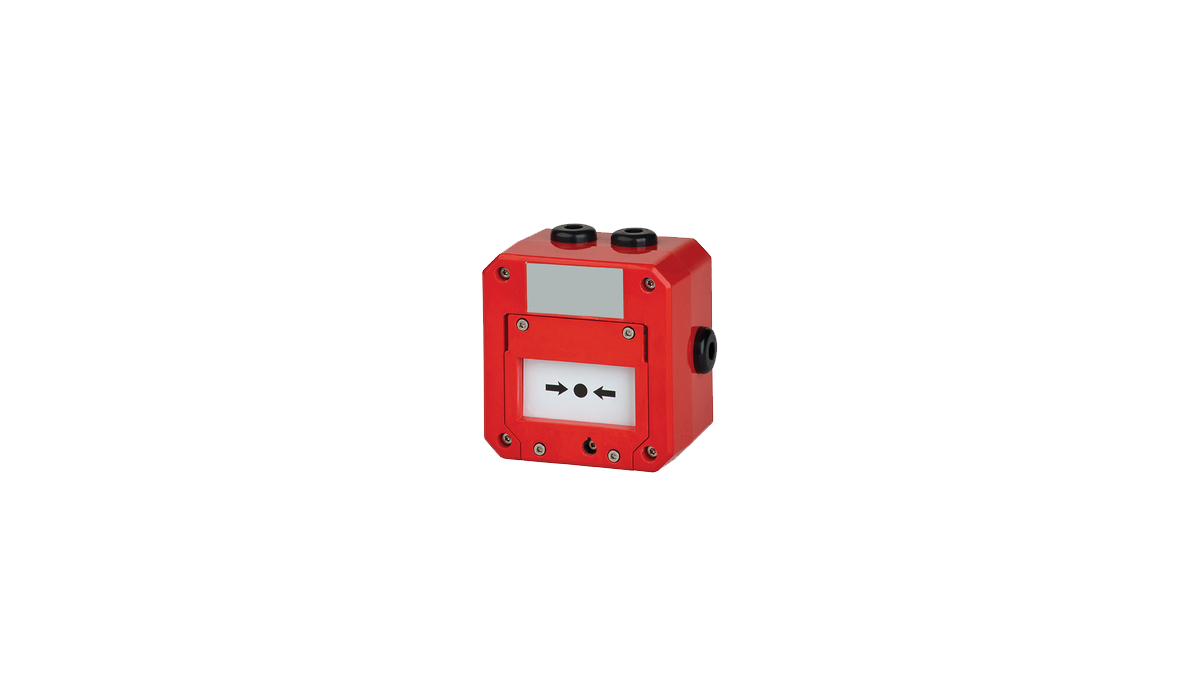

WP6-BG:	Weatherproof Break Glass Manual Call Point
Switch rating:	AC voltage 250V Max. Current 5.0A Max. DC voltage 48V Max. Current 1.0A Max. DC voltage 24V Max. Current 3.0A Max.
Ambient:	Ta = -40°C to +75°C [-40° to +167°F]
Ingress protection:	IP66/67
Enclosure material:	GRP – Glass Reinforced Polyester
Colour:	RAL3000 Red (others available on request)
Cable entries:	2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries Adapters available to 1/2"NPT, 3/4"NPT or M25
Stopping plugs:	2 x Nylon plugs as standard Brass, nickel plated brass and stainless steel plugs optional
Terminals:	8 × 2.5mm² DIN rail
Weight:	1.2Kg/2.64Ibs
