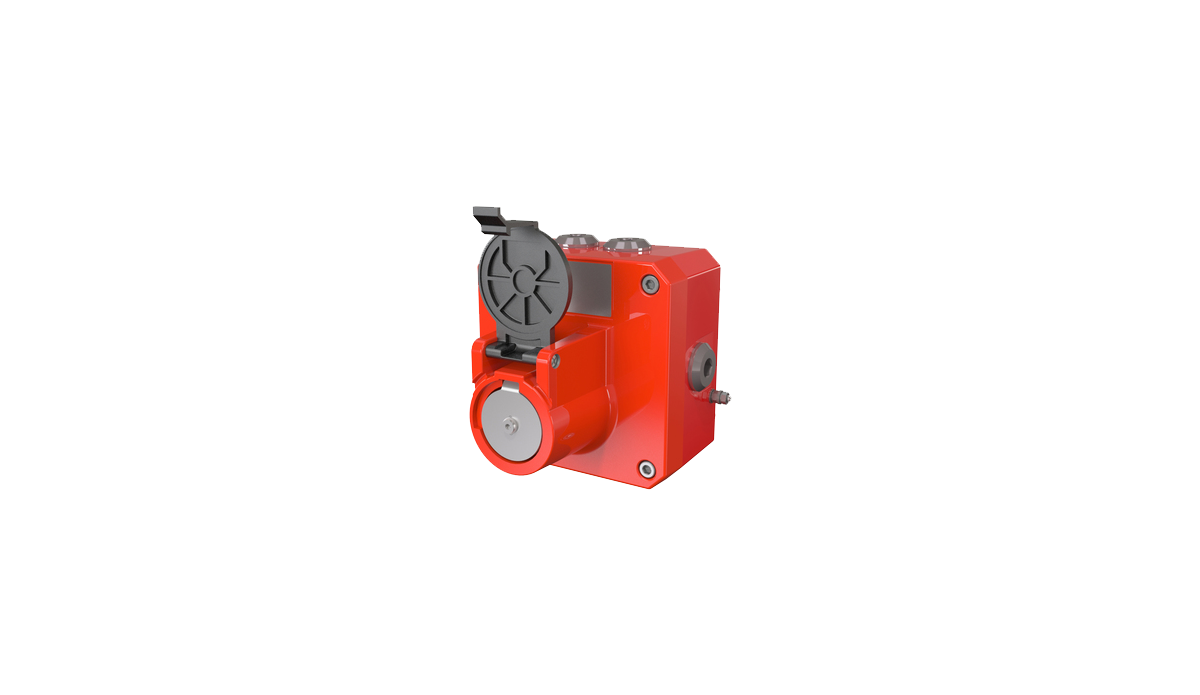

The UV stable glass reinforced polyester enclosure can withstand the rigours of on and offshore safe area installations. The extended operating temperature range, stainless steel mechanism and latching lift flap ensures the WP7-PM provides a reliable momentary switch activation.
| WP7-PM: | Weatherproof Momentary push button |
| Switch rating: | AC voltage 250V Max Current 5.0A Max DC voltage 75V Max Current 0.75A Max DC voltage 50V Max Current 1.0A Max DC voltage 30V Max Current 5.0A Max Resistive Load; Inductive Load 3.0A Max DC voltage 12V Max Current 5.0A Max |
| Temp. Range: | -55°C to +75°C |
| Ingress protection: | EN/IEC 60529 – IP66/67 |
| Enclosure material: | GRP – Glass Reinforced Polyester |
| Colour: | RAL3000 Red Other solid and striped colours available |
| Cable entries: | 2 x M20x1.5 top and 1 x M20x1.5 side. Back box can be rotated to give 2 x bottom and 1 x side entries |
| Stopping plugs: | 2 x Stopping plugs as standard Nylon, Brass, Nickel plated or Stainless Steel |
| Terminals: | DIN rail 8 × 2.5mm² SAK2.5 or Termination board featuring 6 × 2.5mm² terminals plus 4 x dedicated EOL & Series terminals |
| Earth: | External M5 earth connection |
| Weight: | 2.1Kg/4.63Ibs |
