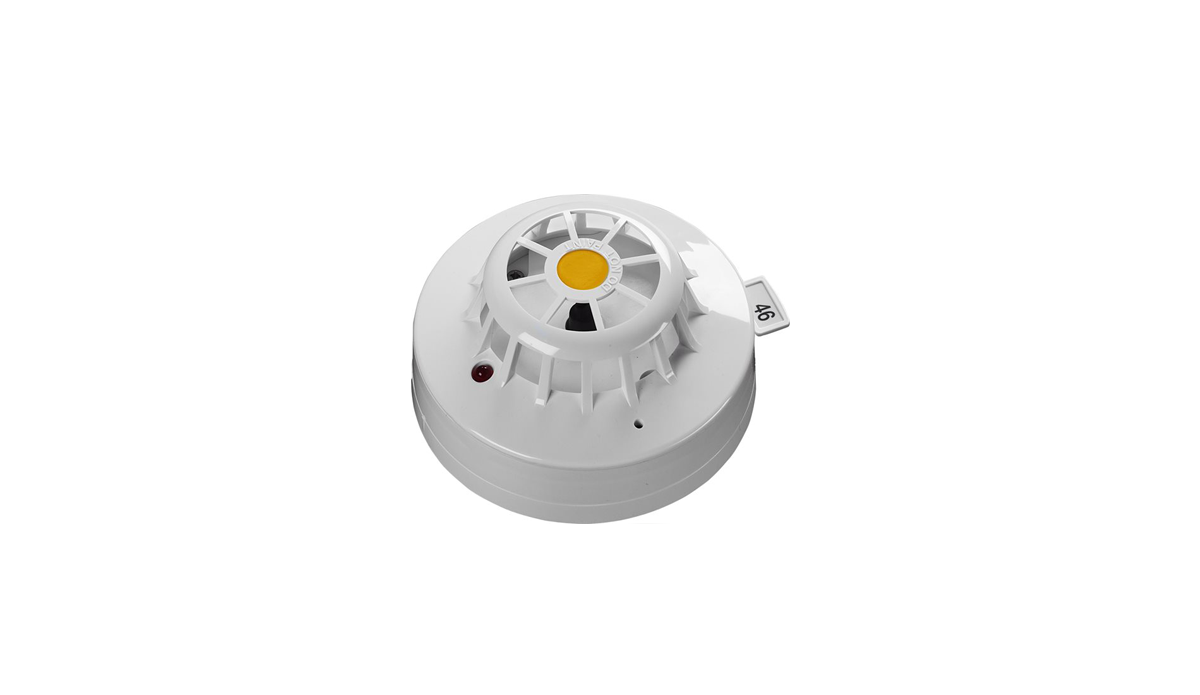

The XP95 Heat Detector monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature.
The XP95 range of analogue addressable fire detectors uses tried and trusted technology to give the best performance, and has unique features that benefit the installer and the end user. It is suitable for medium-to-large applications with simple installation requirements.
As it operates using digital communication, XP95 has a high immunity from corruption, and is, therefore, often preferred in a large system where life safety is critical. XP95 products are frequently used in commercial, industrial, financial, government, IT/telecoms and healthcare applications.
The detectors are designed to be connected to a two wire loop circuit carrying both data and a 17V to 28V dc supply.
The detectors are connected to the incoming and outgoing supply via terminals L1 and L2 in the mounting base. A remote LED indicator requiring not more than 4mA at 5V may be connected between +R and -R terminals. An earth connection terminal is also provided.
When a device is energised the ASIC regulates the flow of power and controls the data processing. The thermistor provides an output over normal operating ranges that is proportional to the external air temperature. This voltage output is processed in the A/D converter and stored by the communications ASIC. It is transmitted to control equipment when the device is interrogated. When a count of 55 is exceeded the alarm flag is initiated and the device address is added to the data stream every 32 polling.
| General | |
| Applications | Car parks/loading bays, Dusty environments, Warehouses, Hotels, Medium to large buildings, Offices, Restaurants, Retail, Cafes, Small to medium buildings, University campuses |
| Fire Type | Fast burning, flaming fires |
| Warranty | 10 year |
| Performance | |
| Analogue value nominal | 2 |
| Analogue value (- tolerance) | 2 |
| Analogue value | 25 +2/-2 |
| Alarm level analogue value | 55 |
| Chamber type | Chevron |
| Heat classification | A2S |
| Electrical | |
| Protocol voltage (min) | 5V |
| Protocol voltage (max) | 9V |
| Protocol voltage | 5 to 9V peak to peak |
| Power-up surge current | 1mA |
| Maximum power-up time | 4 seconds |
| Status indicator - Alarm | Red |
| Status indicator - Fault | Off |
| Quiescent current | 250μA |
| Quiescent current tested at | 24V dc |
| Sampling frequency | +L2 Loop in & out positive, double terminal |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal |
| Terminal functions +R | +R Remote indicator positive connection |
| Terminal functions -R | -R Remote indicator negative connection |
| Polarity | L1 & L2 are polarity insensitive |
| Battery powered | No |
| Environmental | |
| Humidity (min) | 0% RH |
| Humidity (max) | 95% RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature (min) | -20°C |
| Operating temperature (max) | 70°C |
| Operating temperature | -20 to 70°C |
| IP rating Value | IP53 |
| Storage temperature (min) | -30°C |
| Storage temperature (max) | 80°C |
| Storage temperature | -30 to 80°C |
| Conformance | |
| Standards | EN 54-5 |
| Approvals | CPR, KRS, LPCB |
| Mechanical | |
| Weight | 105g |
| Colour | White |
| Finish | Gloss |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm |
| Product diameter | 100mm |
| Certificate | Datasheet |
|---|---|
| LPCB - Loss Prevention Certification Board Certificate | PP2611 XP95 Heat Detector Data Sheet |
| KRS - Korean Register of Shipping | |
| CPR - Certificate of Constancy of Performance |
